RAID Subsystem - Rackmount

ARC-71xx series

(GbE(x4) / 6Gbps eSATA / USB 3.0 to SATA RAID Storage Subsystem)

System Architecture


✵ Quad Core ARM V7 1.2 GHz processor

✵ 2GB on-board DDR3-1200 SDRAM with ECC protection

✵ Support up to 24 internal 6.0Gbps SATA ports

✵ LAN with MPIO, MC/S, Trunking and LACP support

✵ Battery backup module ready (optional)


Faster Than Ever

Availability & Security

Unparalleled Performance

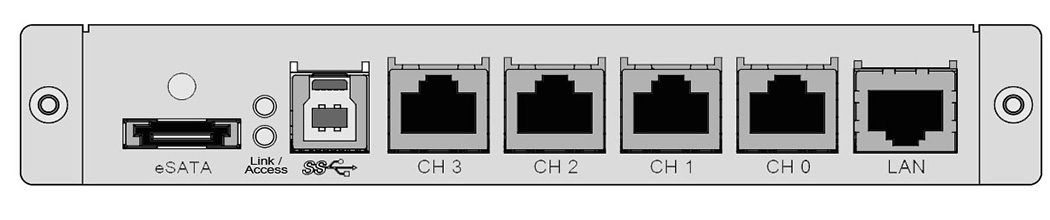

Host Interface

1 x 6.0Gbps eSATA

1 x 5.0Gbps USB 3.0

4 x 1.0Gbps GbE iSCSI

High Performance ROC

Quad Core ARM V7 1.2 GHz Processor

2GB DDR3-1200 ECC Protection

Drive Interface

Up to 8/12/16/24 x 3.5”/2.5”

6Gb/s and 3Gb/s

SATA HDDs/SSDs

GbE(x4) / 6Gbps eSATA / USB 3.0 to SATA RAID Storage Subsystem


The ARC-71xx RAID subsystem is a family of 8/12/16/24 6.0Gbps SATA hard drive ports depending upon the amount of storage required. The ARC-71xx supports multiple host interfaces; eSATA lll, iSCSI or USB 3.0 that can work with different application requirement.

When properly configured, the RAID subsystem can provide non-stop service with a high degree of fault tolerance through the use of RAID technology and advanced array management features. The 4 port iSCSI connections deliver high performance, advanced function, high availability, and scalable storage capacity with both direct iSCSI host and IP network connectivity.

  Cost-Effective ARC-71xx Series SATA Rackmount RAID Storage
ARC-7108MS-HR2 ARC-7112MS-HR2 ARC-7116MS-HR3 ARC-7124MS-HR4
Internal Ports 8 x 3.5”/2.5” SATA 12 x 3.5”/2.5” SATA 16 x 3.5”/2.5” SATA 24 x 3.5”/2.5” SATA
Data Transfer Rate Up to 6Gb/s per port
Cache Protection 2GB DDR3-1200 ECC Protection
Host Interface 1 x 6.0Gbps eSATA, 1 x 5.0Gbps USB 3.0 and 4 x 1.0Gbps GbE iSCSI
Processor Quad Core ARM V7 1.2 GHz processor
RAID Features • RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
• Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID 100)
• Configurable stripe size up to 1024KB
• Automatic drive failover and detection and rebuild using multiple Global, Dedicated or Enclosure hot- spare drives
• Multiple pairs SSD/HDD disk clone function
• SSD automatic monitor clone (AMC) support
• SED (Self-encrypting drives) function support
• Support for native 4K and 512 byte sector devices
• Support HDD firmware update
• Hot-swap and redundant components for increasing availability
• eSATA host: 8 volumes(with port multiplier), iSCSI host:128 volumes and USB 3.0 host: 8 volumes
RAID Management Software • Flashable firmware via RS-232 and LAN port
• Push Buttons and LCD for setup and status
• Firmware-embedded manager via RS-232 port
• Browser-based RAID manager, SMTP manager, SNMP agent and Telnet function
• API with sample and functional code
• ArcCLI (command-line interface)
• ArcSAP monitor utility easily manage multiple RAID units
Operating Systems OS Independent
Physical Dimensions
(H x W x D)
88.2 x 482 x 484 mm
(3.5” x 18.9” x 19”)
88.2 x 482 x 484 mm
(3.5” x 18.9” x 19”)
132.6 x 482 x 484 mm
(5.2” x 18.9” x 19”)
176.4 x 482 x 484 mm
(6.9” x 18.9” x 19”)
Weight 36.4 lbs / 16.5 kg 37.5 lbs / 17 Kg 38.6 lbs / 17.5 Kg Single: 44 lbs / 20 Kg
Dual: 46.3 lbs / 21 Kg
Power Supply Dual 400W hot swap and redundant Triple 400W hot swap and redundant
Operating Temperature 0 °C to 40 °C
Regulatory Certification CE, FCC
Environmental Compliance RoHS
Warranty 3 years
BBM Support ARC-6120BAT121-7

Downloads


File Version Date
ARC-71xx Specification 1.1 2020/04/01
ARC-71xx User Manual 1.2 2020/02/24
ARC-71xx Quick Installation Guide 1.0 2017/07/11
CLI Utility For LAN Port - User Manual 5.1 2020/04/20
LCD Manual 1.3 2015/10/20
ArcSAP User Manual 4.1 2019/07/19
File Version Date
ARC-71xx firmware 1.56 2019/07/30
1. Add progress % for some http operation
2. Improve FAIL_DRIVE_IF_MANY_ERROR
